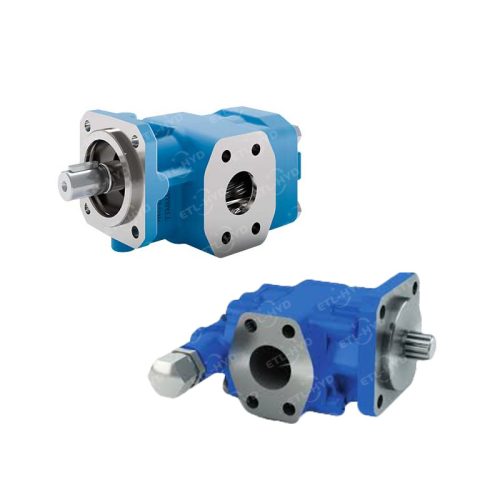

Eternal Hydraulic KF Gear Pump
Gear pumps KF are used for pumping a wide variety of fluids.
Gear pumps KF are distinguished especially by their wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade.
The pumps are also suitable for media with low lubricating properties.
The standard housing sections are of grey cast iron.
The gear units are manufactured from high-strength case-hardening steel, hardened and mounted in special multi-compound plain bearing bushes.
The standard drive shaft is sealed by single radial lip-type seal.
All pump sizes incorporate helical tooth system.
This feature, combined with special gear geometry, results in extremely low noise levels and reduced pressure pulsation.
Technical Data
→KF Hydraulic Gear Pump PDF
Variants
• Sealing of the drive shaft:
– Single radial lip-type seal
– Double radial lip-type seal (Quench)
– Mechanical seal
• Outboard bearing to take up input drive-side radial load
• Pressure valve for pump and system
• Uniform discharge flow direction with changing direction of rotation by means of flange-mounting valve combination (universal valve).
Special Design
Various shafts ends and gear units, as well as flange mounted versions, bearing alternatives, multi-stage pump combinations for your special application are
available on request.
Our Sales engineers will be pleased to advise you.
Accessories
• Connecting flanges
• Couplings
• Bell housing
• Quench tank
• Attenuation elements
