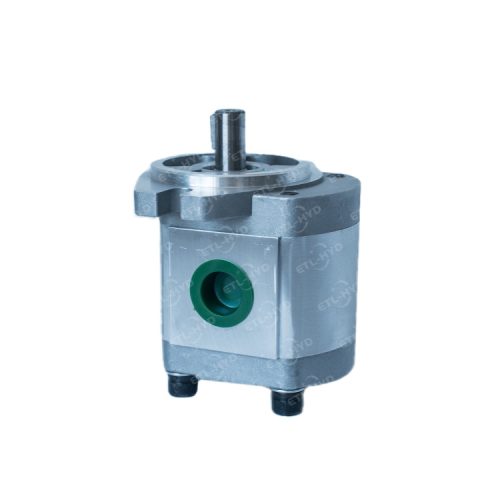

Eternal Hydraulic P2 Hydraulic Gear Pump
P2 series external hydraulic gear pump is a power element in the hydraulic system. The pump adopts high-precision gears and high-strength aluminum alloy casing, which makes it simple in structure, light in weight, high in efficiency, low in noise and reliable in use, etc. It is widely used in agricultural machinery, engineering machinery, construction machinery, textile machinery, mining machinery and lifting and transportation industry.
Model Code
P2 series single pump
| P2 | 06 | R | P | 01 | G |
|---|---|---|---|---|---|
| 系列号码 Series No |
排量ml/r Displacement | 旋转方向(从轴端看) Rotation Direction (Viewed from Shaft side) |
油口尺寸 Port S泛e |
轴伸型式 Shaft type |
安装法兰代号 Mounting Flange Code |
| P2系列齿轮泵 P2 Series Gear Pump |
参考规格表 Follow Below Table |
R：顺时针 Clockwise L:超时针Counter Clockwise |
N:NPT U:UNF P:PT(Standard) F:法兰 Flange |
01标准型 Standard | G标准型 G:Standard |
Dimension
Technical Data
| 型号 Model |
排量ml/r Displacement | 工作压力(Mpa) Work Pressure | 外形尺寸Dimension(mm) | 重量(kg) Weight | 进出油口 (PT) Inlet/Outlet Port | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 额定 Rated |
最高Max | A | B | L | 入口 Inlet | 出 口 Outlet | |||||
| P204 | 4.00 | 21 | 18 | 25 | 21 | 47.90 | 48.95 | 97.70 | 2.32 | 3/4” PT |
1/2〃 PT |
| P206 | 6.20 | 51.60 | 50.80 | 101.4 | 2.45 | ||||||
| P208 | 8.40 | 55.10 | 52.55 | 104.9 | 2.55 | ||||||
| P211 | 11.0 | 59.60 | 54.80 | 109.4 | 2.73 | ||||||
| P214 | 14.3 | 65.10 | 57.55 | 114.9 | 2.82 | ||||||
| P216 | 16.5 | 68.80 | 59.40 | 118.6 | 2.91 | ||||||
| P219 | 19.2 | 73.10 | 61.55 | 122.9 | 3.14 | 1〃 PT |
3/4〃 PT |
||||
| P222 | 22.5 | 17 | 20 | 78.60 | 64.30 | 128.4 | 3.27 | ||||
| P225 | 25.0 | 18 | 21 | 19 | 83.10 | 66.55 | 132.9 | 3.36 | |||
| P230 | 30.0 | 18 | 86.10 | 68.05 | 135.9 | 3.59 | |||||
→P2 Series Hydraulic Gear Pump PDF
Related Product
→HGP-1A Hydraulic Gear Pump
→HGP-2A Hydraulic Gear Pump
→HGP-3A Hydraulic Gear Pump
→HGP-11A Hydraulic Gear Pump
→HGP-22A Hydraulic Gear Pump
→HGP-33A Hydraulic Gear Pump
→HGP-333A Hydraulic Gear Pump
→GPY Series Hydraulic Gear Pump
→P1 Series Hydraulic Gear Pump
Application
Suitable for a wide range of widely used in agricultural machinery, engineering machinery, construction machinery, textile machinery, mining machinery and lifting and transportation industry. civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
Features of P2 Hydraulic Gear Pump
- High-strength aluminum alloy casing, light weight, alloy steel hard surface gear transmission, smooth transmission.
- Composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, which can work efficiently under severe working conditions.
- High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency. Automatic compensation mechanism for axial and radial clearance, so that the oil pump can maintain high volumetric efficiency and high mechanical efficiency for a long time.
- Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
- Light weight, compact structure,
- Body aluminum alloy, Precision gear processing, national standard grade 7 gears, small fluctuation, high pressure, low noise, stable product performance.
