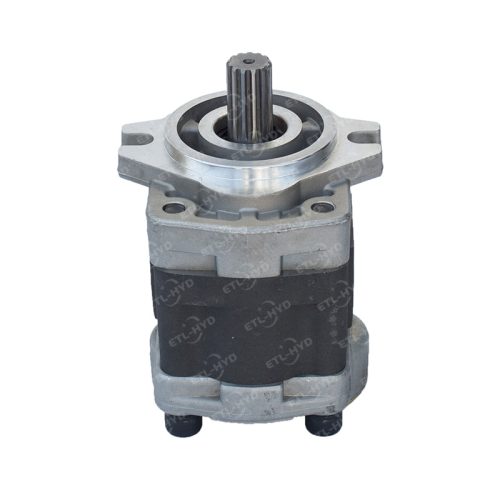

Eternal Hydraulic SGP Hydraulic Gear Pump
Eternal Hydraulic SGP SGP2 series gear pump is external gear pump possessing axial clearance automatic compensation and radial hydraulic balance, adopting three opening structure. The bearing are DU bearing and the side plate is bimetals material. The front and rear covers are made of aluminium accessory with high strength. The middle part is consist of iron casting and the surface is covered with metal. All above improve the performance and reliablity of the pumps.
Model Code of SGP2
| Model | Nominal displacement (m/r ) | Pressure (Mpa) | Rotation speed(r/min) | Inlet pressure (Mpa) | Weight (kg) | ||
| Rated | Max | Min | Max | ||||
| SGP2-32 | 32 | 24.5 | 29.4 | 400 | 3000 | -0.02~0.2 | 5.7(5.1) |
| SGP2-36 | 36 | 3000(2500) | 5.9(5.3) | ||||
| SGP2-40 | 40 | 22.6 | 27.5 | 6.1(5.4) | |||
| SGP2-44 | 44 | 20.6 | 24.5 | 6.3(5.6) | |||
| SGP2-48 | 48 | 18.6 | 22.6 | 3000(2500) | 6.6 (5.9) | ||
| SGP2-52 | 52 | 17.2 | 20.6 | 6.8 (6.1) | |||
Dimension
→SGP&KZP4 Hydraulic Gear Pump PDF
Application
Widely applied in the industries of hoisting and conveying machinery, road machinery,environmental protection machinery, light industry machinery…Such as For example, forklifts, stackers, crane trucks, agricultural machinery, forestry machinery, hydraulic systems, etc.
Features of SGP Hydraulic Gear Pump：
- Eternal Hydraulic’s SGP/KZP4 Series Gear Pump can interchange Shimadzu type. SGP2 Can maintain high performance at high pressure.
- High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
- Low noise, with high volume rate and high mechanical efficiency.
- Stable operation and long working life
- Brand Guarantee. Every product of Eternal Hydraulic will be systematically tested before leaving the factory. And there we have a 12-month warranty with professional after-sales team.
